5D Thermal Aerosol Generator
The 5D Thermal Aerosol Generator is designed for operators who require a wide range of aerosol output concentrations to perform leak tests on smaller clean air cabinets through cleanroom air handling systems. It is the high capacity solution used in demanding industries.
APPLICATIONS:
APPLICATIONS:
Nuclear Facilities
Pharmaceutical Manufacturers
Medical Facilities and Cleanrooms
Independent Filter Certifiers
THE 5D PROVIDES:
High Aerosol Output
Widest Range of System Flow Rates
One Minute Warm-up Time
Flex-Fuel Capability
Rugged Portability
Safe and Reliable Operation
.png)
Cost-Effective
Save time and money in the most demanding multi-filter cleanroom installations. In high-volume HEPA and ULPA air flow environments, the 5D can significantly reduce the time it takes to conduct filter leak test scans, generating aerosol concentrations that can challenge the largest Air Handling Unit (AHU) configurations. With 1- to 2-minute warmup and cool-down times, begin testing high-flow systems without waiting, and be ready to store and move the unit minutes after the job is complete.

Rugged Portability
The 5D components are housed in a stainless-steel enclosure designed to withstand the rigors of portable filtration-system certification. Its lightweight, slim profile and supplied hand and shoulder straps make it an everyday, portable aerosol generator.
The 5D Thermal Aerosol Generator is designed for operators who require a wide range of aerosol output concentrations to perform leak tests on smaller clean air cabinets through cleanroom air handling systems. It is the high capacity solution used in demanding industries.
APPLICATIONS:
APPLICATIONS:
Nuclear Facilities
Pharmaceutical Manufacturers
Medical Facilities and Cleanrooms
Independent Filter Certifiers
THE 5D PROVIDES:
High Aerosol Output
Widest Range of System Flow Rates
One Minute Warm-up Time
Flex-Fuel Capability
Rugged Portability
Safe and Reliable Operation
Flexible
Generating the widest aerosol concentration range available, the 5D accommodates both high- and low- flow environments, from cabinets*. to the most demanding cleanroom installations. And with flex-fuel capability, the 5D can use any reagent, including DOP (DEHP), PAO-4, DOS (DEHS), Ondina, or mineral oil.
Safe and Reliable
An innovative design minimizing system thermal requirements provides a faster, simpler, and safer alternative to other available solutions. The 5D is certified to comply with all applicable electrical and safety requirements, including CE and RoHS 2 standards.
* Per NSF/ANSI 49, use 4B/4BL/6D laskin nozzle generators for biosafety cabinet testing.
Accessories and Other Related Items
Accessories

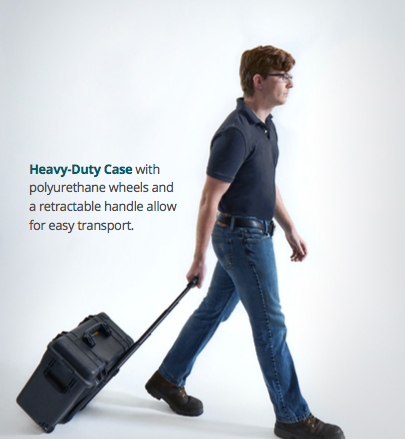

HEAVY-DUTY TRANSPORT CASE
Heavy-Duty Transport Case combines 5D, carrying straps, hose adapter and inert gas regulator.
.jpg)
INERT GAS REGULATOR ASSEMBLY
Two single stage regulators are available to connect your 5D to an inert gas source – the CGA 320 for CO2 and the CGA 580 for N2, Ar or He.
HOSE ADAPTER ASSEMBLY
Provides an easy method to adapt hose sizes ranging from 2” (50.8 mm) to 1” (26.6 mm) ID to your equipment.
Accessories for In-situ Testing
POSITIVE INJECTION PUMP (PIP)
Used to inject the aerosol output of the 5D into a positive pressure duct or plenum.
AEROSOL INJECTION PORTS
Easy and repeatable method to introduce aerosol into a duct.
SPARGE PIPES
Used to distribute the challenge aerosol evenly and e ectively into a test system, including ducts.
PRODUCT SPECIFICATIONS |
Generation |
Thermal Vapor |
Warm Up Time |
1-2 minutes |
System Flow Rates |
500 - 70,000 cfm
(833 - 119,000 m3/hr.) |
Aerosol Output at
Max Concentration |
100ug/l @ 7,000 cfm
10ug/l @ 70,000 cfm |
Particle Distribution |
Meets ANSI/ASME N509/510 |
Flex-Fuel Capability |
DOP, PAO-4, DOS, Ondina EL, and Mineral Oil |
Electrical |
10A @120VAC 60Hz; 5A @ 240 VAC/50Hz |
Size |
17” x5”x15”(43cm x 12cm x 36cm) |
Weight |
17.6 Lbs. (approximately 8 kg) empty |
Standards |
ISO14644-3, CE RoHS 2 (2011/65/EU directive) |
|
