Remote DP

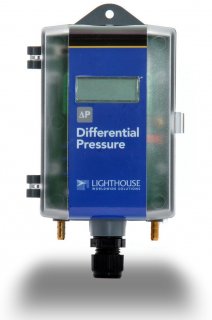

The Remote DP Sensor has been designed for cleanroom operations with an IP67 rated housing and easy field service features. The Remote DP Sensor combines a flexible field selectable range, output and calibration options. A local display allows for cleanroom personnel to easily identify room specifications before entering sterile rooms.

The Remote DP Sensor has an accuracy of ±1.0% or can come with a more sensitive 0.5% accuracy over the full range. The sensor has been designed for easy on-site installation and comes in wall, cabinet and duct mounted versions with fixed or extended probes to enable installation in challenging situations. The Remote DP Sensor uses a stainless steel capacitive design with an advanced capacitive element that provides excellent reliability and stability with low measuring ranges available.

Features:

  • 4 to 8 selectable field ranges
    • +/-0.1" WC (+/-25 Pa)
    • +/-0.25" WC (+/-50 Pa)
    • +/-0.5" WC (+/-100 Pa)
    • +/- 1" WC (+/-250 Pa)
    • +/- 2.5" WC (+/-500 Pa)
    • +/- 5.0" WC (+/-1,000 Pa)
  • Accuracy: +/-1% or +/-0.5% full range
  • Stability (max.) 1.0% FS/YR or 2.0% FS.YR
  • Analog Output (4 - 20mA)
  • Enhanced sensor protection
  • Simple on-site installation
  • Wall, cabinet or duct mounted
  • Cleanroom wipe down
  • Local LCD display
  • IP67 enclosure
  • Wall or DIN Mounting
  • Push button for auto zero
  • 2 year warranty

Performance Data
DP-0.5

DP-1.0




Field Selectable Ranges
±0.1” WC (±25 Pa)

±0.1“ WC (±25 Pa)
(Bidirectional)
±0.25” WC (±50 Pa)

±0.25” WC (±50 Pa)







Model for Higher Pressure Applications



±0.5“ WC (±100 Pa)







±1.0” WC (±250 Pa)



±2.5” WC (±500 Pa)







±5.0” WC (±1,000 Pa)




Accuracy Scale
±0.5% Full Scale

±1.0% Full Scale
Long Term Stability (max.)
1.0% FS/YR

2.0% FS/YR
Physical Description






Case
Fire-Retardant Polycarbonate (UL 94 V-0 Approved),



Hinged Lid




Display


4 Digit LCD
Mounting
Wall/DIN or Duct Mounting



Electrical Connection Block
Removable Screw Terminal
Pressure Fitting
3/16” O.D. Barbed Brass




Zero


Push Button
Span


Push Button




Weight (approx.)


8 Ounces
Environmental Data







Operating Temperature

32 to 122°F (0 to 50°C)
Electrical Data






Excitation Range
13 to 30 VDC/18 to 24 VAC (Voltage Output) 13 to 30 VDC

(4 to 20mA output at terminals)




Current Consumption


30mA (max)
Mis-Wiring
Reverse Excitation Protection



Field Selectable Output
0 to 5 V, 0 to 10V (3-wire), 4 to 20mA (2-wire)
