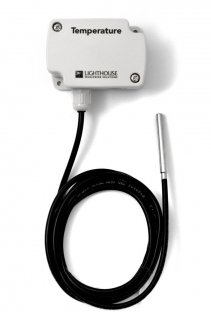

REMOTE RTD





The Remote RTD is a small cost effective high accuracy temperature sensor suited for cleanroom applications and for monitoring laboratory equipment where product is stored. Ideal for incubator, oven, fridge and freezer applications in your facility or basic room monitoring and storage facility monitoring for product storage.

With an easy installation and IP65 rated cable outlet and IP65/NEMA 4 enclosure, the Remote RTD is most suitable for cleanroom applications when requiring high protection class. The easy install design enables secure mounting on vertical or horizontal surfaces. Only one CAT 5/6 cable is required for power and communications.

Features:

  • Range -30 to +105°C (-22° F to 221° F)

  • Accuracy ±0.3°C (0.54°F) at 20°C

    • (incl. hysteresis, non-linearity and repeatability)

  • Sensing element Pt 1000 (class A)

  • Analog Output ( 4 - 20-mA)

  • Remote probe option with different cable lengths (0.5, 2 and 3 meter lengths)

  • Long term sensor stability

  • Smooth cover and cleanroom friendly enclosure

  • Protected PCB

  • Simple on-site installation

  • Cleanroom wipe down

  • IP65 / NEMA 4 rating

  • 2 year warranty

Active Output


Operating temperature
remote probe: -30 °C… +105 °C (-22 °F...+221 °F)

enclosure: -30 °C.... +70 °C (-22 °F...+158 °F)


Sensing element
Pt1000 (class A, DIN EN60751)
Output
4-20 mA


Accuracy
±0.3 °C (±0.54 °F) at 20 °C (68 °F)
Supply voltage



for 4-20 mA
10 V DC + RL x 20 mA < V+ < 35 V DC
Electromagnetic compatibility
EN61326-1, EN61326-2-3 - Industrial Environment


Passive Output


Operating temperature
-30 °C…+105 °C (-22
°F...+221 °F)
T-Sensor connection
two-wire



Electrical connection
screw terminal, 2x max. 2.5 mm2 (0.004 in2)


General


Enclosure material
polycarbonate, UL94-V0 approved
Protection class
IP65/NEMA4 (enclosure) IP67/NEMA 4 (remote probe)


Cable gland
M16x1.5, UL94-V2
Hose clamp material
stainless steel (corr. 1.4301 / 304)


Storage temperature
-30 °C…+70 °C (-22 °F...+158 °F)
Working and storage humidity range
5 % rh...95 % rh, no condensation
